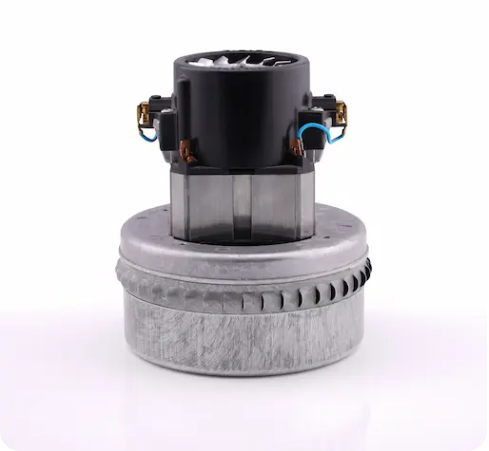

Introduction to the T.S.J Dual-Fan Wet and Dry Vacuum Cleaner Motor

The T.S.J dual-fan wet and dry vacuum cleaner motor is a powerful domestically manufactured motor designed for use in wet and dry vacuum cleaners and suction equipment. Featuring a dual-fan structure, Class F insulation, and the ability to be installed horizontally or vertically, this motor can be used in the design and production of industrial, semi-industrial, workshop, and drum vacuum cleaners.

According to the information provided, T.S.J is one of the manufacturers of dual-fan wet and dry vacuum cleaner motors in Iran. In addition to being supplied to the domestic market, this product is also exported to international markets. Technology associated with Germany’s AEG has been used in the design and production of this motor.

One of the most important features of this product is its ability to provide high suction power while maintaining controlled energy consumption. The standard model is offered with a power rating of 1,100 watts, and it can also be manufactured in power ratings ranging from 1,000 to 1,400 watts according to manufacturers’ requirements and the type of appliance.

The motor’s dual-fan structure creates improved airflow and stronger suction. The T.S.J wet and dry motor is designed for appliances that must collect not only dust and dry debris but also water and approved liquids.

General Specifications of the T.S.J Dual-Fan Wet and Dry Vacuum Cleaner Motor

The main specifications of this product include:

• T.S.J dual-fan vacuum cleaner motor
• Suitable for wet and dry vacuum cleaners
• Available in power ratings from 1,000 to 1,400 watts
• Rated power of the featured model: 1,100 watts
• High suction power
• Dual-fan structure for improved airflow
• Suitable for collecting dirt, dust, and liquids
• Insulated structure suitable for wet and dry applications
• Class F insulation
• Universal motor design
• Suitable for designs compatible with AC and DC power
• Horizontal installation capability
• Vertical installation capability
• Certified with a standard mark
• Four-year company replacement warranty
• Manufactured in Iran
• Suitable for manufacturers and repair technicians of cleaning equipment

What Is a Wet and Dry Vacuum Cleaner Motor?

A wet and dry vacuum cleaner motor is designed for appliances capable of collecting both dry and wet contaminants. These vacuum cleaners can collect dust, dirt, dry debris, water, and certain non-flammable liquids.

In conventional vacuum cleaners, the motor and filtration system are primarily designed to collect dirt and dust. In wet and dry appliances, however, the tank, airflow path, protective systems, and motor configuration must be designed to prevent unauthorized contact between liquids and electrical components.

The T.S.J wet and dry motor is manufactured for use in such systems. However, the ability to collect water does not depend solely on the motor. All appliance components, including the tank, protective float, filter, seals, wiring, and airflow path, must be designed for wet and dry operation.

Dual-Fan Structure

One of the most important features of this motor is the use of two fans to create airflow and suction.

When the motor is switched on, the fans begin rotating at high speed and create the pressure difference required to draw air, dust, or liquids into the appliance. The dual-fan structure can provide improved suction pressure and better performance in tank-based vacuum cleaners.

The advantages of the dual-fan structure include:

• Suitable airflow
• Increased suction power
• Improved collection of dirt and dust
• Support for liquid collection in standard wet and dry appliances
• Suitable for larger tanks
• Effective performance in industrial and semi-industrial vacuum cleaners
• High suction with controlled power consumption

The motor’s final performance also depends on the overall vacuum cleaner design, hose diameter, tank capacity, filter type, and sealing quality of the connections.

1,100-Watt Power Consumption

The featured T.S.J dual-fan wet and dry vacuum cleaner motor has a rated power consumption of 1,100 watts.

The 1,100-watt rating indicates the electrical power required by the motor under specified operating conditions. The dual-fan structure helps the motor produce suitable suction for wet and dry applications at this level of energy consumption.

This feature is important for manufacturers seeking a suitable balance between performance, electricity consumption, and motor size.

Motor wattage is not the same as suction power. Motor power is expressed in watts, while suction performance may be measured using vacuum pressure, airflow rate, or other specialized units.

Available from 1,000 to 1,400 Watts

One of T.S.J’s important production capabilities is the ability to manufacture this motor in power ratings ranging from 1,000 to 1,400 watts.

This range allows manufacturers to select a motor according to:

• Vacuum cleaner tank capacity
• Household or industrial application
• Required suction power
• Expected operating hours
• Cooling-system design
• Type of power supply and control circuit
• Motor-compartment dimensions
• Target energy consumption
• Type of contaminants to be collected

A lower-powered motor may be appropriate for lighter appliances, while larger or industrial vacuum cleaners may require a higher power rating.

The correct motor rating should be selected according to technical calculations and the appliance’s complete design.

Wet and Dry Suction Capability

This motor is designed for use in vacuum cleaners capable of collecting both dry debris and liquids.

When installed in a compatible and properly designed appliance, the vacuum cleaner may be used to collect:

• Dust
• Dirt
• Sand and dry particles
• Hair and lint
• Crumbs and small debris
• Water spilled on surfaces
• Non-flammable liquids
• Residual water after floor washing

Liquid collection must be supported by a protective float or an appropriate automatic shut-off system. As the liquid level rises inside the tank, this system should prevent liquid from entering the motor’s airflow path.

This motor must not be used to collect flammable materials, gasoline, thinner, solvents, acids, or extremely hot liquids unless the entire appliance has been specifically designed for such hazardous applications.

Suitable Insulation for Wet and Dry Applications

According to the stated specifications, the T.S.J dual-fan wet and dry vacuum cleaner motor has an insulated structure suitable for this type of application.

Motor insulation helps protect electrical components and windings under the appliance’s operating conditions. However, an insulated motor does not mean that water can enter the motor or wiring directly.

For safe operation, the appliance should include:

• A standard wet and dry tank
• Automatic shut-off float system
• An airflow path separated from liquids
• Appropriate sealing
• Compatible filters
• Safe electrical wiring
• Ground connection
• Thermal protection
• Standard housing and connections

Direct water penetration into the motor or electrical connections may create a risk of electric shock, short circuit, and motor failure.

High Suction Power

The T.S.J dual-fan wet and dry motor is designed to provide suitable suction performance. According to the information provided, the airflow or suction capacity of this product is stated as 400 cubic decimeters per second.

The motor’s suction power can be useful for:

• Collecting dirt and dust
• Removing water from surfaces
• Cleaning workshops
• Cleaning parking-area floors
• Collecting liquids in car-wash facilities
• Use in drum vacuum cleaners
• Use in industrial cleaning equipment
• Collecting contaminants in service environments

Before publishing the exact suction figure in the product specifications, the value and unit should be compared with the manufacturer’s official catalog, as vacuum pressure and airflow rate are two different performance indicators.

Class F Insulation

The T.S.J dual-fan wet and dry vacuum cleaner motor features Class F insulation.

The insulation class indicates the thermal resistance of the insulating materials used in the motor windings and electrical components. Suitable insulation helps maintain motor performance under the normal temperature increases that occur during operation.

The advantages of Class F insulation include:

• Suitable thermal resistance of the windings
• Reduced risk of insulation damage at operating temperatures
• Improved motor stability
• Support for longer winding service life
• More reliable performance under standard operating conditions

A suitable insulation class does not replace correct cooling and airflow. A blocked suction path, full tank, or dirty filters can increase the motor’s temperature.

Universal Motor Design

The T.S.J dual-fan wet and dry vacuum cleaner motor is described as a universal motor.

With an appropriate circuit design, universal motors can operate using alternating current or direct current. Due to their high rotational speed, suitable power-to-size ratio, and relatively compact dimensions, these motors are widely used in vacuum cleaners and electrical appliances.

General characteristics of universal motors include:

• High rotational speed
• Suitable power relative to size
• Speed-control capability with a compatible circuit
• Suitable for suction equipment
• Commonly used in vacuum cleaners

Compatibility with AC and DC does not mean that the motor can be connected directly to any power source. Voltage, current, control circuit, dimmer, wiring, and protective equipment must be selected according to the motor’s technical specifications.

Horizontal or Vertical Installation

This motor can be installed horizontally or vertically. This feature gives manufacturers greater flexibility when using the motor in appliances with different designs.

The following factors should be checked during horizontal or vertical installation:

• Air inlet and outlet direction
• Motor mounting position
• Cooling-air path
• Condition of mounts and vibration dampers
• Distance between the motor and tank
• Wiring position
• Fan orientation
• Type of enclosure sealing
• Access for servicing and carbon-brush replacement

Incorrect installation may result in vibration, increased noise, reduced suction power, or inadequate cooling.

Applications of the T.S.J Dual-Fan Wet and Dry Motor

This motor can be used in the design or repair of compatible appliances, including:

• Industrial wet and dry vacuum cleaners
• Drum vacuum cleaners
• Semi-industrial vacuum cleaners
• Workshop suction equipment
• Car-wash cleaning equipment
• Parking-area vacuum cleaners
• Factory cleaning equipment
• Liquid collection equipment
• Vacuum cleaners for commercial centers
• Service-industry suction equipment

Compatibility should be checked in terms of dimensions, voltage, power, installation position, and airflow path.

Suitable for Cleaning-Equipment Manufacturers

The ability to manufacture this motor in different power ratings makes it a suitable option for vacuum cleaner and suction-equipment manufacturers.

Before selecting the motor, manufacturers should review:

• Required appliance power
• Tank capacity
• Airflow rate
• Vacuum pressure
• Operating voltage
• Current consumption
• Speed-control type
• Motor dimensions
• Air-inlet diameter
• Air-outlet direction
• Cooling system
• Appliance noise level
• Safety standards
• Tank-overfill protection system

The motor’s actual performance after installation depends on the compatibility of all vacuum cleaner components.

Suitable for Motor Repair and Replacement

The T.S.J dual-fan wet and dry motor can also be used to replace the motor in certain compatible vacuum cleaners.

When selecting a replacement motor, the following characteristics should be compared with the previous motor:

• Power consumption
• Voltage
• Current rating
• Motor height
• Housing diameter
• Number of fans
• Air-inlet and air-outlet type
• Mounting locations
• Installation orientation
• Connector and wiring type
• Insulation class
• Wet and dry application
• Compatibility with the control board

Matching only the motor wattage is not sufficient to confirm compatibility.

Advantages of the T.S.J Dual-Fan Wet and Dry Vacuum Cleaner Motor

The most important advantages of this product include:

Dual-Fan Structure

The two fans support improved airflow and suitable suction performance.

Suitable for Wet and Dry Applications

The motor is designed for use in standard systems that collect dry contaminants and liquids.

Controlled Power Consumption

The 1,100-watt model can provide a suitable balance between energy consumption and suction performance through its dual-fan structure.

Available in Different Power Ratings

Production from 1,000 to 1,400 watts allows manufacturers to select a motor suited to their appliance requirements.

Class F Insulation

The motor insulation is designed to withstand Class F thermal conditions.

Horizontal or Vertical Installation

This feature provides greater flexibility in motor installation and appliance design.

Universal Motor

The universal design allows the motor to be used in compatible AC or DC circuits.

Domestic Manufacturing

Manufacturing the motor in Iran may provide easier access to services, spare parts, and support.

Four-Year Replacement Warranty

According to the information provided, this product includes a four-year company replacement warranty.

Standard Certification

The presence of a standard certification mark is another stated feature of this motor.

Four-Year Replacement Warranty

According to the information provided, the T.S.J dual-fan wet and dry vacuum cleaner motor includes a four-year company replacement warranty.

The exact warranty conditions should be reviewed before purchase. Damage caused by incorrect installation, direct water entry into the motor, connection to an unsuitable voltage, blocked airflow, or modification of the windings may not be covered by the warranty.

The following documents should be retained for warranty service:

• Purchase invoice
• Warranty card
• Motor serial number
• Product packaging
• Seller information
• Proof of installation by an authorized technician

Important Considerations Before Purchase

Before purchasing this motor, check:

• Whether the appliance is designed for wet and dry use
• Power rating of the previous motor
• Voltage and current requirements
• Compartment dimensions
• Number of fans
• Motor height and diameter
• Air-inlet and air-outlet direction
• Cooling-system type
• Compatibility with the control board and dimmer
• Wiring type
• Horizontal or vertical installation requirements
• Warranty conditions
• Presence of a protective float inside the tank

Important Installation Instructions

The motor should be installed by a qualified technician or specialist.

The following requirements must be observed during installation:

• Disconnect the appliance completely from the power supply.
• Complete the wiring according to the technical diagram.
• Check the ground connection.
• Ensure that mounts and vibration dampers are in good condition.
• Make sure that the airflow path is not blocked.
• Secure the motor so it cannot move inside the housing.
• Install the protective float correctly.
• Prevent wires from contacting moving components.
• Insulate connections against moisture.
• Test the motor using its rated voltage.
• Check motor noise, vibration, and temperature after installation.

Motor Maintenance Tips

To extend the motor’s service life:

• Empty the tank before it becomes completely full.
• Inspect the protective float regularly.
• Keep filters clean.
• Ensure that the hose and brush are not blocked.
• Do not collect flammable liquids.
• Prevent water from directly entering the motor housing.
• Keep cooling vents clean.
• Operate the appliance using the correct voltage.
• Switch off the appliance immediately if a burning smell is detected.
• Inspect the carbon brushes and commutator periodically.
• Empty and dry the tank after collecting liquids.
• Have repairs carried out by a qualified technician.

Signs That the Motor Requires Inspection

Stop using the appliance and inspect the motor if any of the following signs are observed:

• Sudden reduction in suction
• Unusual noise
• Severe vibration
• Burning smell
• Excessive sparking
• Overheating
• Sudden shutdown
• Water entering the motor compartment
• Abnormal speed changes
• Smoke emission
• Motor failing to start

Conclusion and Purchase Value

With a standard power rating of 1,100 watts, production options ranging from 1,000 to 1,400 watts, Class F insulation, and horizontal or vertical installation capability, the T.S.J dual-fan wet and dry vacuum cleaner motor is a suitable option for manufacturing or repairing compatible wet and dry vacuum cleaners.

Its dual-fan structure supports improved airflow and suitable suction power. Compatibility with wet and dry suction systems, universal motor design, domestic manufacturing, and a four-year replacement warranty are among the product’s most important features.

For safe and effective operation, this motor must be installed in an appliance equipped with a standard tank, protective float, filter, and sealing system.

Overall, the T.S.J motor is worth considering for anyone looking for an Iranian-made dual-fan vacuum cleaner motor for wet and dry appliances.
